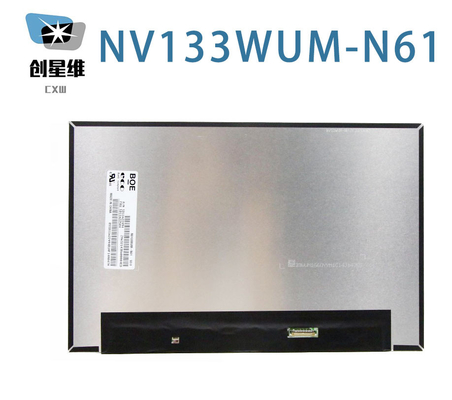

Thông tin chi tiết sản phẩm:
|
| Brand: | BOE | Diagonal Size: | 13.3" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1200, WUXGA 170PPI | Luminance: | 300 cd/m² |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Max. Ratings: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| NV133WUM-N61 | a-Si TFT-LCD , LCM | BOE0964 | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Screen Size : | 13.3" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1920(RGB)×1200, WUXGA | RGB Vertical Stripe | 0.04966×0.14898 mm | 0.14898×0.14898 mm [170PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 286.042×178.776 mm | - | 291.04×187.38 mm | 2.25/4.5 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:10 | Landscape type | Slim (PCBA Bent, T≤3.0mm) | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 210g (Max.) | - | Antiglare (Haze 25%), Hard coating (3H) | ||
| Holes & Brackets : | Without | |||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 300 cd/m² (Typ.) | ADS, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 89/89/89/89 (Typ.)(CR≥10) | 25 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 16.7M (8-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 75% | 100% | 75% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 78% | 56% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.25/1.54 (Max.)(5/13 points) | ||
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 15K(Min.) | 9S6P | 6 strings | - | |
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| With LED Driver | Included in signal interface | - | ||||
| WLED Driver Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 5/12/21V (Min./Typ./Max.) | 218mA (Max.) | 2.62W (Max.) | ||||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 166mA (Max.) | 0.5W (Max.) | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| eDP (2 Lanes), eDP1.3, HBR1 (2.7G/lane) | Connector | |||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| STM | MSAK24025P30 | 1 pcs | 30 pins | 0.5 mm | EDP-30P2L-020A | |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 286.042(W)×178.776(H) mm, outline size of 291.04(W)×187.38(H)×4.5(D) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 210g (Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a ADS, Normally Black, Transmissive LCM product, NV133WUM-N61 can provides 300 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted 9S6P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. NV133WUM-N61 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.)
